πΈ 2MP Outdoor Dual-Light Bullet Camera β Full Specifications
| Category | Specification |
|---|---|
| Image Sensor | 2MP CMOS Sensor |
| Resolution | 1080p @ 25fps (PAL) / 30fps (NTSC) |
| Lens Options | 2.8mm (wide angle) or 3.6mm (narrower FOV) |
| IR Illumination | EXIR IR up to 25 meters |
| White Light | Up to 20 meters for color night vision |
| Smart Lighting | Works with Hikvision AcuSense DVRs to trigger IR/white light based on motion (human/vehicle) |
| Min. Illumination | 0.01 lux @ F1.2 (AGC on), 0 lux with IR or white light |
| IR Cut Filter | ICR (Auto Day/Night switching) |
| Digital Noise Reduction | DNR (likely 2D DNR) |
| Audio | – Built-in microphone |
| Video Outputs | TVI / AHD / CVI / CVBS β 4-in-1 analog formats |
| OSD Menu | Yes β Up the Coax (UTC) for access via compatible DVR |
| Ingress Protection | IP67 β weatherproof, dust-tight |
| Power Supply | 12V DC |
π‘ Key Features
π Dual-Light (IR + White Light) Illumination
-
IR for discreet black & white night vision
-
White light for full-color video even in total darkness
-
Smart Lighting (with AcuSense DVR): Automatically switches based on detection (e.g. human triggers white light, rest remains IR)
π§ Built-in Audio
-
Built-in microphone
-
Audio transmitted over coax (works only in TVI mode + compatible DVR)
βοΈ OSD Configuration
-
Use UTC (Up-the-Coax) from DVR to:
-
Adjust brightness, contrast, white light mode
-
Enable/disable IR/white light
-
Access DNR, image settings, etc.
-
π¦οΈ Outdoor-Ready
-
IP67-rated for harsh weather (rain, dust, cold)
-
Sturdy bullet housing for wall or pole mounting
π¦ Best Use Cases
-
Perimeter monitoring (homes, buildings, gates)
-
Parking areas where color recording at night is critical
-
Remote outdoor areas requiring deterrence lighting + audio
-
Environments with coaxial infrastructure (ideal for HD-TVI upgrades)
π Possible Model Match (Hikvision):
| Brand | Model Example | Notes |
|---|---|---|

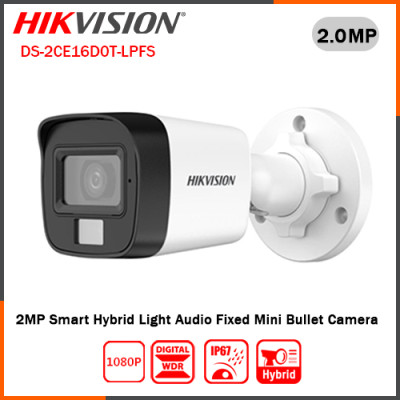

| Hikvision | DS-2CE10DF0T-FS | 2MP, dual-light, audio, IP67 |
| HiLook | THC-B120-MC or similar | OEM/entry-level variant |
| OEM | Available via white-label brands | Specs align closely with Hikvision OEM products |
π§ Optional DVR Integration:
When used with a Hikvision AcuSense DVR, you gain:
-
Smart Motion Detection (SMD) β human/vehicle classification
-
Smart lighting logic β switch to white light only on valid targets
-
Improved event filtering + playback
π Lens Selection Tips:
| Lens | Field of View | Best For |
|---|---|---|
| 2.8mm | ~103Β° | Wide coverage, short range |
| 3.6mm | ~80Β° | Narrower view, longer range (e.g., hallways, driveways) |
