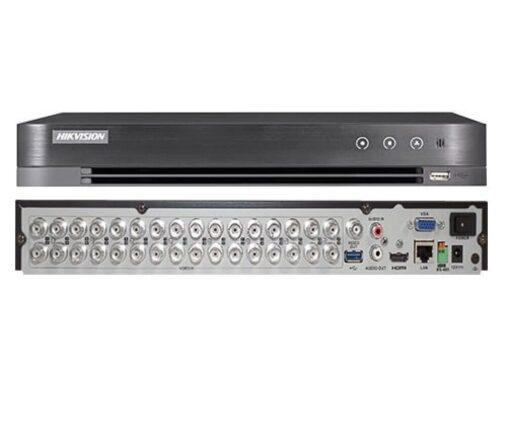

📼 32-Channel Hybrid DVR – Detailed Specification Sheet
| Feature | Specification |
|---|---|
| Analog Video Inputs | 32 × BNC ports |
| Audio Inputs | – 32-ch audio over coax (TVI with mic)
– 1 × RCA audio input |
| Audio Output | 1 × RCA output |
| IP Camera Inputs | – 2-ch native IP support
– Expandable up to 18 IP channels (with analog disable) |
| Video Outputs | – 1 × HDMI (supports 4K UHD)
– 1 × VGA
– 1 × CVBS (BNC monitor output) |
| Recording Resolution | – 1080P Lite @ 25fps/ch for analog
– IP channels support up to 6MP (depends on model) |
| Compression | H.265+ / H.265 / H.264+ / H.264 |
| Storage | 2 × SATA interfaces (up to 6TB each) |
| Smart Features | Depends on firmware (typically motion detection, no AI unless specified) |
| Chassis | 1U, 380mm depth |
| Remote Access | Supports Hik-Connect (or OEM app) |
| Audio over Coax | ✅ Supported in TVI mode |
| OSD Menu Access | ✅ Via UTC (Up-the-Coax) |
| Hybrid Capability | ✅ Yes — analog + IP mix |
📦 Likely Model Match
| Brand | Model Example | Notes |
|---|---|---|
| Hikvision | DS-7332HQHI-K4 | 32CH DVR with IP expansion, dual SATA, 4K HDMI |
| OEM | Often matches above model | Varies by branding but same specs |
🧠 Smart Feature Support?
This model does not include AcuSense or Motion Detection 2.0 by default.
It focuses on capacity and hybrid compatibility, not AI.
If you need AI functions like false alarm filtering or smart motion detection, you should consider:
-
iDS-7332HQHI-M4/S (with AcuSense AI)
-
Or upgrade to IP NVR with AI cameras
🏠 Best Use Cases
-
Large analog CCTV installations (factories, campuses, hospitals)
-
Situations needing up to 32 coax cameras
-
Sites looking to gradually transition to IP (up to 18 IP cameras supported)
-
Locations needing 4K monitoring output and CVBS legacy display
🎥 Recommended Cameras
-
TVI Cameras (2MP–5MP Lite), with or without mic
-
Optional IP cameras up to 6MP
-
Example analog cameras:
-
DS-2CE16D0T-ITPF (2MP IR Bullet)
-
DS-2CE12DF3T-FS (ColorVu + Mic)
-
